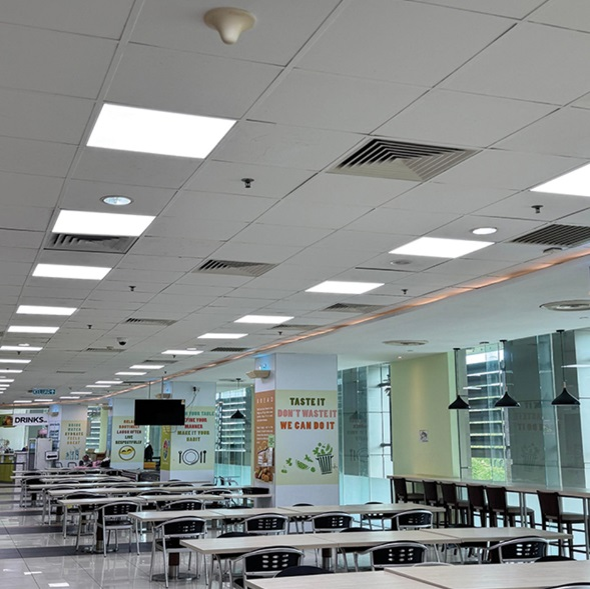

LED Backlit Panel Light (Eco Master Series)
Use Cases :
Retail | Office | Industrial | Hospitality
Wattage (W):
25W / 40W / 60W
Color Temperature (CCT):
3,000 / 4,000 / 6,500
Color Rendering Index (CRI):
> 85
Beam Angle:
120°
Lumen (lm):
2,750 / 4,400 / 6,600
Luminous Efficacy (lm/w):
110
Material:
Aluminium Panel with Polycarbonate (PC) Milky Diffuser
Dimension (mm):
L: 595 x W: 595 x H: 30 / L: 1195 x W: 295 x H: 30 / L: 1195 x W: 595 x H: 30
Weight (gm):
1,800 / 2,800 / 3,600
Ingress Protection (IP):
IP20 / IP40
Lifespan (hrs):
50,000
Driver:
External - Non Dimming / Dimming 1-10V, Phase Cut, DALI
Input Voltage:
220 - 240Vac (50/60 Hz)
Power Factor (PF):
> 0.95
Total Harmonic Distortion (THD):
< 15%
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) | |
|---|---|---|---|---|---|---|
| LBP606▢-A25SN3P▢ | 25W | > 85 | 2,750 | L: 595 x W: 595 x H: 30 mm | 50,000 | |
| LBP606▢-A40SN3P▢ | 40W | > 85 | 4,400 | L: 595 x W: 595 x H: 30 | 50,000 | |
| LBP312▢-A40SN3P▢ | 40W | > 85 | 4,400 | L: 1,195 x W: 295 x H: 30 mm | 50,000 | |
| LBP612▢-A60SN3P▢ | 60W | > 85 | 6,600 | L: 1,195 x W: 595 x H: 30 | 50,000 |
Interested in this product?
Contact us for more information or request a free on-site consultation using the button below.
