LED Cylindrical Surface Down Light (Elegance Series)
Use Cases :

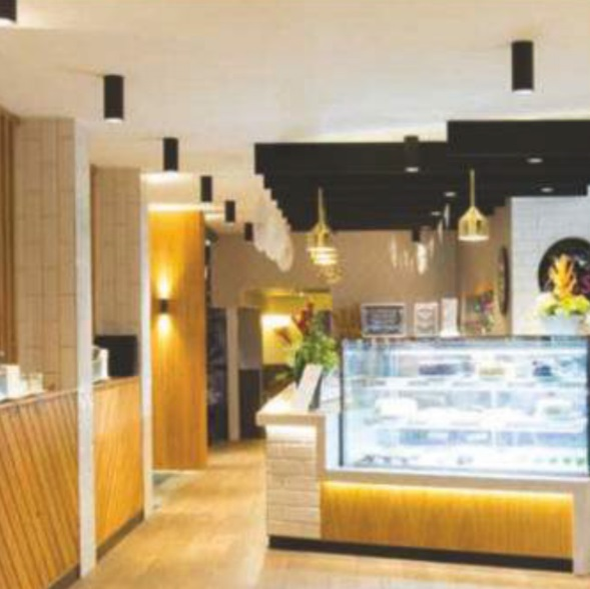

Restaurant | Hotel | Retail | Office | Commercial | Shopping Mall
Wattage (W):
8W / 12W / 19W / 30W
Color Temperature (CCT):
2700 / 3000 / 4000 / 6500
Color Rendering Index (CRI):
85 / 95
Beam Angle:
15° / 25° / 40° / 60°
Lumen (lm):
760 / 1,100 / 1,800 / 2,700
Luminous Efficacy (lm/w):
95 / 92 / 95 / 90
Material:
Aluminium + Clear Glass Diffuser
Dimension (mm):
Ø: 100 x H: 155 / Ø: 120 x H: 200 / Ø: 140 x H: 180
Weight (gm):
780 / 880 / 900
Ingress Protection (IP):
IP20 / IP44
Lifespan (hrs):
50,000
Driver:
Internal - Non Dimming
Input Voltage:
220 - 240Vac (50/60 Hz)
Power Factor (PF):
0.95
Total Harmonic Distortion (THD):
< 20%
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) | IP |
|---|---|---|---|---|---|---|
| LCSD315R▢-E08C▢▢▢ | 8 | 85 / 95 | 760 | Ø: 100 x H: 155 | 50,000 | IP20 / IP44 |
| LCSD315R▢-E12C▢▢▢ | 12 | 85 / 95 | 1,100 | Ø: 100 x H: 155 | 50,000 | IP20 / IP44 |
| LCSD315R▢-E15C▢▢▢ | 19 | 85 / 95 | 1,800 | Ø: 120 x H: 200 | 50,000 | IP20 / IP44 |
| LCSD315R▢-E30C▢▢▢ | 30 | 85 / 95 | 2,700 | Ø: 140 x H: 180 | 50,000 | IP20 / IP44 |
