Industrial Lighting > LED High Bay
LED High Bay (Eco Premium Series)
Use Cases :

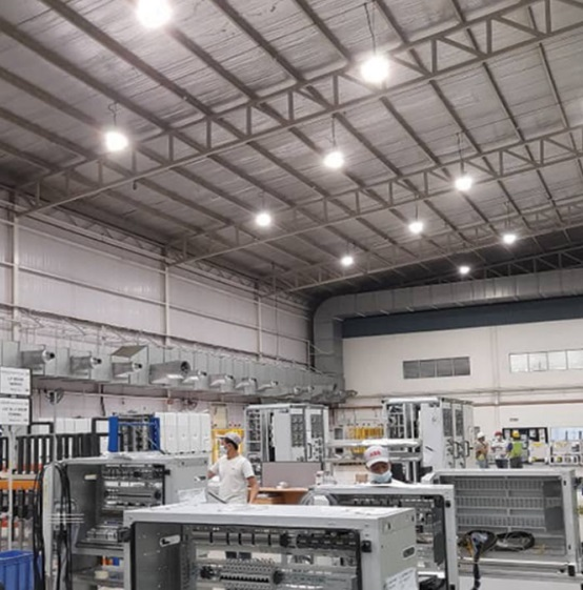

Industrial | Architectural | Shopping Mall | Warehouse | Supermarket
Wattage:
100W / 150W / 180W / 200W / 240W / 280W
Colour Rendering Index (CRI):
> 70
Beam Angle:
120°
Lumen (lm):
16,500 / 24,750 / 29,700 / 33,000 / 39,000 / 46,200 /
Luminous Efficacy:
165
Material:
Aluminium Die Cast with Clear Glass Diffuser (Option: PC Diffuser)
Dimension (mm):
Ø: 280 x H: 245 / Ø: 280 x H: 245 / Ø: 325 x H: 260 / Ø: 325 x H: 260 / Ø: 325 x H: 260 / Ø: 325 x H: 260
Weight (gm):
5,100 / 5,100 / 6,900 / 6,900 / 6,900 / 6,900
Lamp Base:
Hook Type
Ingress Protection (IP):
IP65
Impact Resistance Glass:
IK08
Lifespan (hrs):
60,000
Driver:
External - Non Dimming / Dimming
Input Voltage:
100 - 240Vac (50/60 Hz)
Power Factor (PF):
> 0.95
Total Harmonic Distortion (THD):
< 12%
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) |
|---|---|---|---|---|---|
| LHB-A100PN5G | 100W | > 70 | 16,500 | Ø: 280 x H: 245 | 60,000 |
| LHB-A150PN5G | 150W | > 70 | 24,750 | Ø: 280 x H: 245 | 60,000 |
| LHB-A180PN5G | 180W | > 70 | 29,700 | Ø: 325 x H: 260 | 60,000 |
| LHB-A200PN5G | 200W | > 70 | 33,000 | Ø: 325 x H: 260 | 60,000 |
| LHB-A240PN5G | 240W | > 70 | 39,600 | Ø: 325 x H: 260 | 60,000 |
| LHB-A280PN5G | 280W | > 70 | 46,200 | Ø: 325 x H: 260 | 60,000 |
