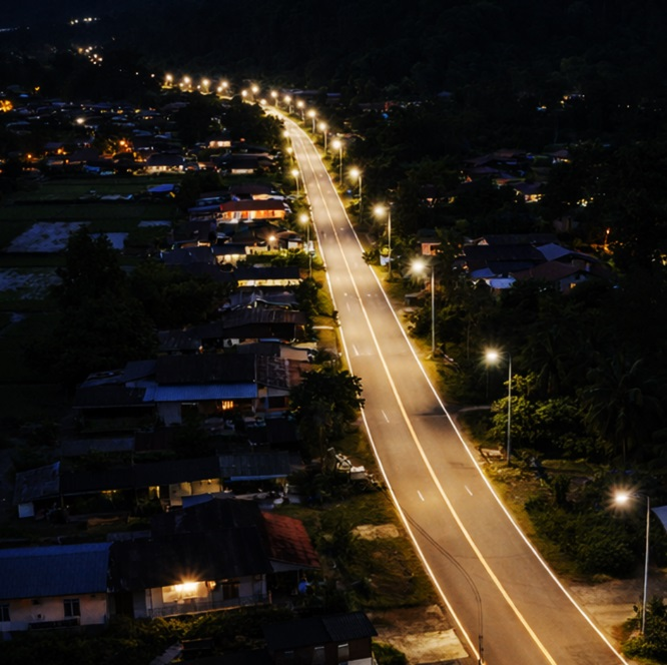

Outdoor Lighting > LED Integrated Solar Street Light
Use Cases :
Industrial | Outdoor | Highway | Compound
Wattage (W):
80W / 100W / 120W / 150W
Colour Rendering Index (CRI):
> 70
Beam Angle:
120°
Lumen (lm):
14,400 / 18,000 / 21,600 / 27,000
Luminous Efficacy (lm/w):
180
Solar Panel Type:
High Efficiency Monocrystalline Silicon
Maximum Power (W):
36V 200W / 36V 300W / 36V 350W
Solar Lifespan:
25 Years
Material:
Aluminium Alloy + Galvanized Iron + Polycarbonate (PC) Lens
Dimension (mm) :
L: 1480 x W: 705 x H: 96 / L: 1480 x W: 705 x H: 96 / L: 1640 x W: 905 x H: 125 / L: 1980 x W: 905 x H: 125
Weight (kg):
46.0kg / 62.0kg / 70.0kg
Pole Bracket Weight (kg):
Inner Diameter: 92mm (6.8kg) / 145mm (7.2kg)
Ingress Protection (IP):
IP66
Lifespan (hrs):
60,000
Battery Type:
Lithium Iron Phosphate (LiFePO4) Battery
Battery Capacity :
25.6V 96AH / 25.6V 114AH / 25.6V 144AH / 25.6V 174AH
System Controller:
12 hrs: 100%
Discharge Time:
12 Hours ( Autonomy ≥ 2 Cloudy / Rainy Days )
Charge Time:
4.5 – 6 Hours
Pole Height (m):
6 – 8m / 8 – 10m / 10 – 12m
Pole Spigot Diameter (Ø: mm):
89mm (Galvanized Pole) / 140mm (Concrete Pole)
Optional Smart Solar Controller:
4-Pin RS485 MPPT Connector: Support LEMS, LORA, NB-IoT Smart Lighting System (Optional)
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) | Maximum Power (W) | Weight (kg) | Battery Capacity | Pole Height (m) |
|---|---|---|---|---|---|---|---|---|---|
| LSSTL36P20-A080N5LY☐ | 80W | > 70 | 14,400 | L: 1,480 x W: 705 x H: 96 mm | 60,000 | 36V 200W | 46.0kg | 25.6V 96AH | 6 - 8m |
| LSSTL36P20-A100N5LY☐ | 100W | > 70 | 18,000 | L: 1,480 x W: 705 x H: 96 mm | 60,000 | 36V 200W | 46.0kg | 25.6V 114AH | 6 - 8m |
| LSSTL36P30-A120N5LY☐ | 120W | > 70 | 21,600 | L: 1,640 x W: 905 x H: 125 mm | 60,000 | 36V 300W | 62.0kg | 25.6V 144AH | 8 - 10m |
| LSSTL36P35-A150N5LY☐ | 150W | > 70 | 27,000 | L: 1,980 x W: 905 x H: 125 mm | 60,000 | 36V 350W | 70.0kg | 25.6V 174AH | 10 - 12m |
