Outdoor Lighting > LED Integrated Solar Street Light

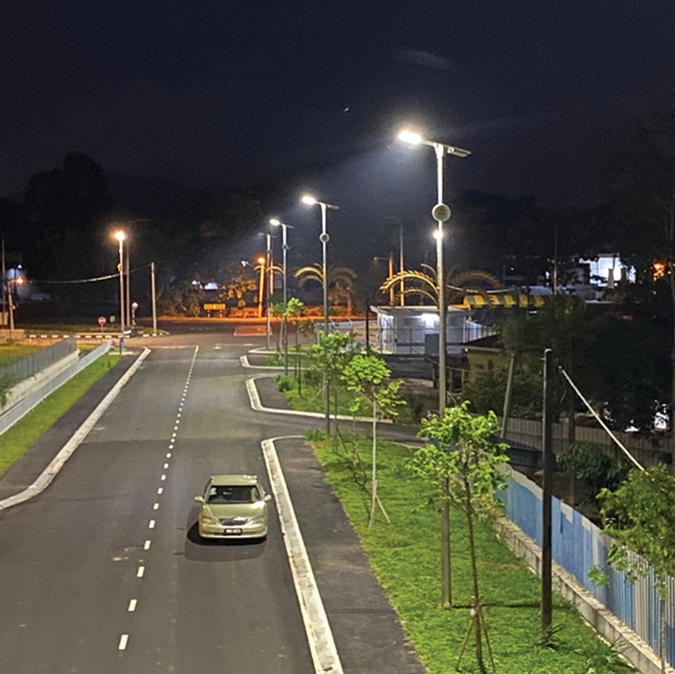

LED Integrated Solar Street Light (Premium Series)
Use Cases :
Industrial | Outdoor | Highway | Compound
Wattage:
60W / 80W / 100W / 120W / 150W
Colour Rendering Index (CRI):
> 70
Beam Angle:
120°
Lumen (lm):
7,200 / 10,800 / 11,700 / 13,500 / 19,800
Luminous Efficacy (lm/w):
180
Solar Panel Type:
High Efficiency Monocrystalline Silicon
Solar Power:
18V 80W / 18V 120W / 36V 160W / 36V 200W
Solar Lifespan:
25 Years
Material:
Aluminum Alloy + Galvanized Iron + Polycarbonate (PC) Lens
Dimension (mm):
L: 920 x W: 485 x H: 96 / L: 1340 x W: 485 x H: 96 / L: 1235 x W: 705 x H: 96 / L: 1480 x W: 705 x H: 96
Weight (kg):
28.0kg / 33.0kg / 38.0kg / 45.0kg
Pole Bracket Weight (kg):
ID (80mm) : 6.5kg / ID (92mm) : 7.2kg
Ingress Protection (IP):
IP66
Lifespan (hrs):
60,000
Battery Type:
Lithium Iron Phosphate (LiFePO4) Battery
Battery Capacity:
12.8V 48AH / 12.8V 72AH / 12.8V 84AH / 25.6V 48AH / 25.6V 72AH
System Controller:
Time Control ( 4hrs: 100%, 2hrs: 60%, 6hrs: 40% )
Discharge Time:
≤ 2 Cloudy / Rainy Days
Charge Time:
4 - 6 hours
Operating Temperature:
- 20°C to +65°C
Pole Height (m):
5 - 6m / 6 - 8m / 6 - 9m / 8 - 10m / 10 - 12m
Pole Spigot Diameter (Ø:mm):
76 / 89mm (Galvanized Pole) / 140 mm (Concrete Pole)
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) |
|---|---|---|---|---|---|
| LSSTL18P08-A060N5L | 60W | > 70 | 7,200 | L: 920 x W: 485 x H: 96 | 60,000 |
| LSSTL18P12-A080N5L | 80W | > 70 | 10,800 | L: 1340 x W: 485 x H: 96 | 60,000 |
| LSSTL18P12-A100N5L | 100W | > 70 | 11,700 | L: 1340 x W: 485 x H: 96 | 60,000 |
| LSSTL36P16-A120N5L | 120W | > 70 | 13,500 | L: 1235 x W: 705 x H: 96 | 60,000 |
| LSSTL36P20-A150N5L | 150W | > 70 | 19,800 | L: 1480 x W: 705 x H: 96 | 60,000 |
