Industrial Lighting > LED Weatherproof Batten

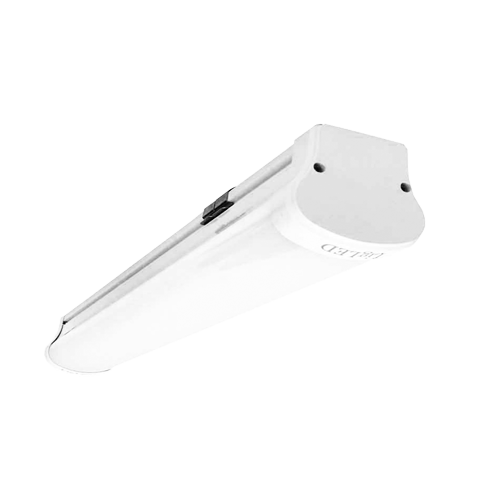

LED Weatherproof Batten (Master Series)

Use Cases :

Office | Industrial | Carpark | Warehouse

Wattage (W):

1 x 9W / 2 x 9W / 1 x 16W / 2 x 16W

Color Temperature (CCT):

3000 / 4000 / 5000 / 6500

Color Rendering Index (CRI):

Beam Angle:

120°

Lumen (lm):

1,300 / 2,600 / 2,300 / 4,600

Luminous Efficacy (lm/w):

145 / 144 / 144 / 144

Material:

Body: Polycarbonate (PC) + Prismatic Polycarbonate (PC) Diffuser + Stainless Steel Clips (Weatherproof)

Dimension (mm):

L: 670 x W: 110 x H: 110 / L: 670 x W: 160 x H: 110 / L: 1270 x W: 110 x H: 110 / L: 1270 x W: 160 x H: 110

Weight (gm):

1050 / 1350 / 1600 / 1800

T8 Tube Dimension (mm):

Ø: 26 x L: 600 / Ø: 26 x L: 1200

Ingress Protection (IP):

IP65

Lifespan (hrs):

50,000

Driver:

Internal - Non Dimming

Input Voltage:

220 - 240Vac (50/60 Hz)

Power Factor (PF):

> 0.90

Total Harmonic Distortion (THD):

< 12%

Specification

Part Number	Wattage (W)	CRI	Lumen (lm)	Dimension (mm)	Lifespan (hrs)	T8 Tube Dimension (mm)
LWPC812▢E-▢09E3▢M▢	1 x 9W	85	1,300	L: 670 x W: 110 x H: 110	50,000	Ø: 26 x L: 600
LWPC822▢E-▢09E3▢M▢	2 x 9W	85	2,900	L: 670 x W: 160 x H: 110	50,000	Ø: 26 x L: 600
LWPC814▢E-▢16E3▢M▢	1 x 16W	85	2,300	L: 1270 x W: 110 x H: 110	50,000	Ø: 26 x L: 1200
LWPC824▢E-▢16E3▢M▢	2 x 16W	85	4,600	L: 1270 x W: 160 x H: 110	50,000	Ø: 26 x L: 1200
