Indoor & Commercial > T8 LED Recessed Mounted

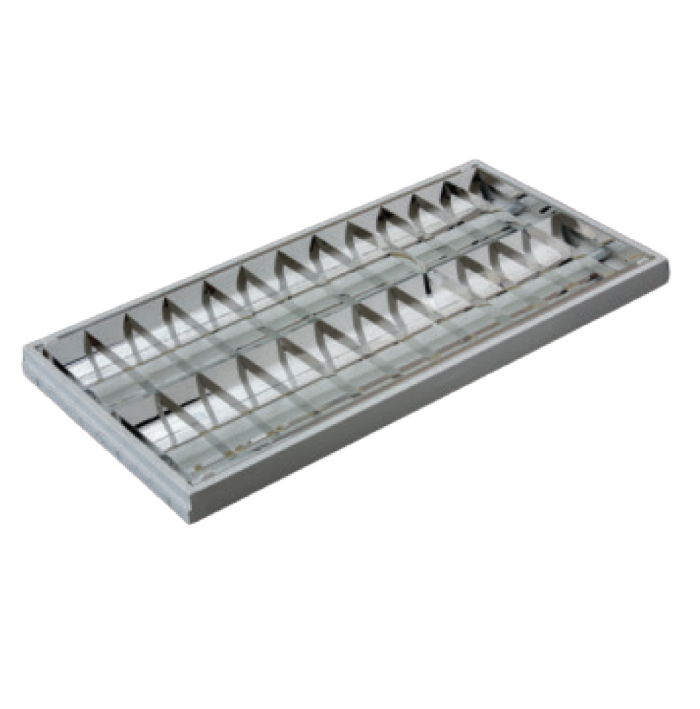

T8 LED Recessed Mounted (Eco Elite Master Series)
Use Cases :
Retail | Office | Industrial | Hospitality
Wattage (W):
8W x 2 / 8W x 3 / 16W x 2 / 16W x 3 / 18W x 2 / 18W x 3
Colour Rendering Index (CRI):
> 80
Beam Angle:
160°
Luminous Efficacy (lm/w):
131 / 128
Material:
Heavy Gauge Steel Sheet Body (Housing) + Polycarbonate (PC) Milky Diffuser (T8 LED Tube)
Dimension (mm):
L: 595 x W: 595 x H: 70 / L: 598 x W: 595 x H: 70 / L: 1195 x W: 595 x H: 70 / L: 1208 x W: 595 x H: 70
Weight (gm):
3,000 / 3,200 / 5,000 / 5,200
Lamp Base:
G13
Ingress Protection (IP):
IP20
Lifespan (hrs):
50,000
Driver:
Internal - Non Dimming (Complied with JKR Spec)
Input Voltage:
220- 240Vac (50160 Hz)
Power Factor (PF):
> 0.95
Total Harmonic Distortion (THD):
< 11%
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) |
|---|---|---|---|---|---|
| LRCM5822241E-P08ES3EM | 8W x 2 | > 80 | 2,100 | L: 595 x W: 595 x H: 70 | 50,000 |
| LRCM5832241E-P08ES3EM | 8W x 3 | > 80 | 3,150 | L: 598 x W: 595 x H:70 | 50,000 |
| LRCM5824241E-P16ES3EM | 16W x 2 | > 80 | 4,200 | L: 1195 x W: 595 x H: 70 | 50,000 |
| LRCM5834241E-P16ES3EM | 16W x 3 | > 80 | 6,300 | L: 1208 x W: 595 x H: 70 | 50,000 |
| LRCM5824241E-P18ES3EM | 18W x 2 | > 80 | 4,600 | L: 1195 x W: 595 x H: 70 | 50,000 |
| LRCM5834241E-P18ES3EM | 18W x 3 | > 80 | 6,900 | L: 1208 x W: 595 x H: 70 | 50,000 |
