Indoor & Commercial > T8 LED Recessed Mounted

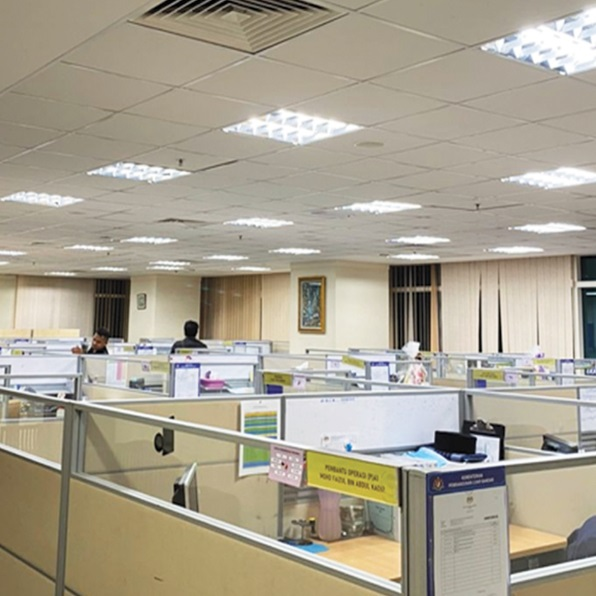

T8 LED Recessed Mounted (Eco Premium Plus Series)
Use Cases :
Retail | Office | Industrial | Hospitality
Wattage (W):
8W x 2 / 8W x 3 / 12W x2 / 12W x 3 / 18W x 2 / 18W x 3
Color Rendering Index (CRI):
> 80
Beam Angle:
160°
Lumen (lm):
2,720 / 4,080 / 4,200 / 6,300 / 6,000 / 9,000
Luminous Efficacy (lm/w):
170 / 175 / 168
Material:
Heavy Gauge Steel Sheet Body (Housing) + Polycarbonate (PC) Milky Diffuser with Built in Aluminium Heat Sink (T8 LED Tube)
Dimension (mm):
L: 595 x W: 595 x H: 70 / L: 598 x W: 595 x H: 70 L: 1195 x W: 595 x H: 70 / L: 1208 x W: 595 x H: 70
Weight (gm):
3,000 / 3,200 / 5,000 / 5,200
Lamp Base:
G13
Ingress Protection (IP):
IP20
Lifespan (hrs):
60,000
Driver:
Internal - Non Dimming (Complied with JKR Spec)
Input Voltage:
220 - 240Vac (50/60 Hz)
Power Factor (PF):
>0.95
Total Harmonic Distortion (THD):
<11%
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) |
|---|---|---|---|---|---|
| LRCM5822241E-P08ES3PM | 8W x 2 | > 80 | 2,720 | L: 595 x W: 595 x H: 70 | 60,000 |
| LRCM5832241E-P08ES3PM | 8W x 3 | > 80 | 4,080 | L: 598 x W: 595 x H: 70 | 60,000 |
| LRCM5824241E-P12ES3PM | 12W x 2 | > 80 | 4,200 | L: 1195 x W: 595 x H: 70 | 60,000 |
| LRCM5834241E-P12ES3PM | 12W x 3 | > 80 | 6,300 | L: 1208 x W: 595 x H: 70 | 60,000 |
| LRCM5824241E-P18ES3PM | 18W x 2 | > 80 | 6,000 | L: 1195 x W: 595 x H: 70 | 60,000 |
| LRCM5834241E-P18ES3PM | 18W x 3 | > 80 | 9,000 | L: 1208 x W: 595 x H: 70 | 60,000 |
Interested in this product?
Contact us for more information or request a free on-site consultation using the button below.
