Industrial Lighting > LED High Bay

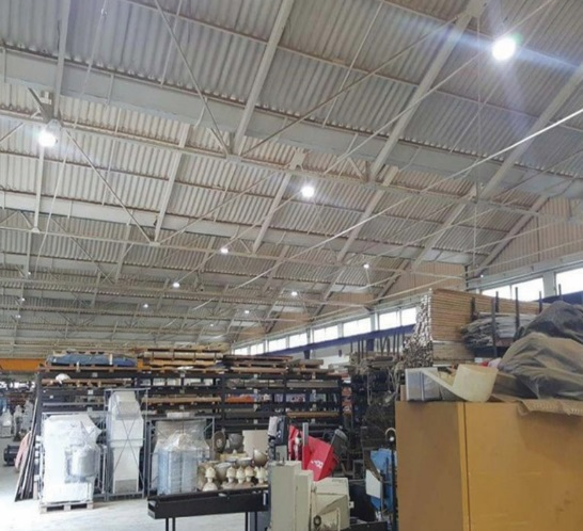

LED High Bay (Eco Master Series)
Use Cases :
Industrial | Architectural | Shopping Mall | Warehouse | Supermarket
Wattage:
80W / 100W / 120W / 150W / 180W / 200W
Color Rendering Index (CRI):
> 80
Beam Angle:
60° / 90° / 120°
Lumen (lm):
12,000 / 15,000 / 18,000 / 22,500 / 27,000 / 30,000
Luminous Efficacy (lm/w):
150
Material:
Aluminium Die Cast with Polycarbonate (PC) Clear Diffuser
Dimension (mm):
Ø: 255 x L: 140 / Ø: 300 x L: 145 / Ø: 340 x L: 160
Weight (gm):
1,550 / 1,900 / 2,110
Lamp Base:
Hook Type
Ingress Protection (IP):
IP65
Lifespan (hrs):
50,000
Driver:
External - Non Dimming
Input Voltage:
100 - 240Vac (50/60 Hz)
Power Factor (PF):
> 0.95
Total Harmonic Distortion (THD):
< 12%
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) |
|---|---|---|---|---|---|
| LHB-A080SN3P | 80W | > 80 | 12,000 | Ø: 255 x L: 140 | 50,000 |
| LHB-A100SN3P | 100W | > 80 | 15,000 | Ø: 255 x L: 140 | 50,000 |
| LHB-A120SN3P | 120W | > 80 | 18,000 | Ø: 255 x L: 140 | 50,000 |
| LHB-A150SN3P | 150W | > 80 | 22,500 | Ø: 300 x L: 145 | 50,000 |
| LHB-A180SN3P | 180W | > 80 | 27,000 | Ø: 340 x L: 160 | 50,000 |
| LHB-A200SN3P | 200W | > 80 | 30,000 | Ø: 340 x L: 160 | 50,000 |
