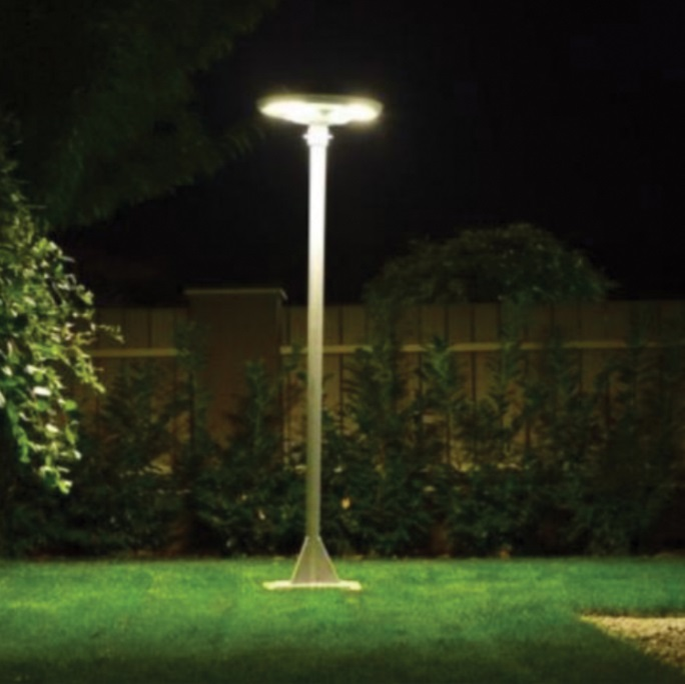

LED Solar Compound Light (Eco Elegant Series)
Use Cases :
Outdoor | Garden | Building | Compound
Wattage:
25W / 30W / 35W
Colour Rendering Index (CRI):
> 70
Beam Angle:
120°
Lumen (lm):
4,250 / 5,100 / 5,950
Luminous Efficacy (lm/w):
170
Solar Panel Type:
High Efficiency Monocrystalline Silicon
Solar Power (W):
18V 50W
Solar Lifespan:
25 Years
Material:
Pure Aluminium Die Cast with Clear Tempered Glass Diffuser
Dimension (mm):
L: 600 x W: 600 x H: 180 / L: 600 x W: 600 x H: 589
Weight (kg):
13kg / 14kg / 15kg
Ingress Protection (IP:
IP66
Impact Resistance Glass:
IK08
Lifespan (hrs):
60,000
Battery Type:
Lithium Iron Phosphate (LiFePO4) Battery
Battery Capacity:
12.8V 30AH / 12.8V 36AH / 12.8V 42AH
System Controller:
Time Control (4hrs: 100%, 2hrs: 60%, 6hrs: 40%), Optional: PIR Sensor
Discharge Time:
12 Hours ( Autonomy ≥ 2 Cloudy / Rainy Days )
Charge Time:
4 – 6 Hours
Pole Spigot Diameter (ø:mm):
82mm
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) |
|---|---|---|---|---|---|
| LSCL18P05A - A25N3G▢ | 25W | > 70 | 4,250 | L: 600 x W: 600 x H: 180 mm | 60,000 |
| LSCL18P05A - A30N3G▢ | 30W | > 70 | 5,100 | L: 600 x W: 600 x H: 180 mm | 60,000 |
| LSCL18P05A - A35N3G▢ | 35W | > 70 | 5,950 | L: 600 x W: 600 x H: 180 mm | 60,000 |
| LSCL18P05B - A25N3G▢ | 25W | > 70 | 4,250 | L: 600 x W: 600 x H: 589 mm | 60,000 |
| LSCL18P05B - A30N3G▢ | 30W | > 70 | 5,100 | L: 600 x W: 600 x H: 589 mm | 60,000 |
| LSCL18P05B - A35N3G▢ | 35W | > 70 | 5,950 | L: 600 x W: 600 x H: 589 mm | 60,000 |
