Facade Lighting > LED Flexible Silicone Strip Square
LED Flexible Silicone Strip Square (Elegant Series)
Use Cases :

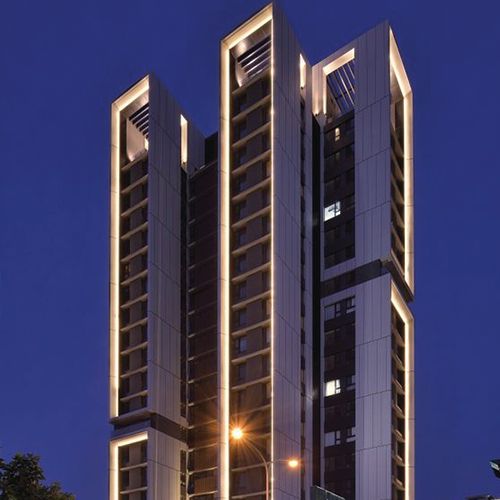

Architectural | Commercial | Outdoor | Facade
Wattage (W):
8W/M / 12W/M
Color Temperature (CCT):
RGB
Color Rendering Index (CRI):
85 / 95
Beam Angle:
120°
Lumen (lm):
320 / 480
Luminous Efficacy (lm/w):
40
Material:
Silicon White + Milky Diffuser
Dimension (mm):
L: 1000 x W: 12 x H:12 / L: 1000 x W: 15 x H:15
Weight (gm):
217 / 238
Ingress Protection (IP):
IP65
Lifespan (hrs):
25,000
Driver:
External - 24V Non Dimming / Dimming 1-10V, DALI
Driver Part Number:
LMW24V-▢▢W / LOMW24V-▢▢W
Input Voltage:
24 Vdc
Driver Ingress Protection (IP):
IP20 / IP67
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) | Driver Part Number |
|---|---|---|---|---|---|---|
| LFS121224E-S08C3M▢ | 8W/M | 85 / 95 | 320 | L: 1000 x W: 12 x H:12 | 25,000 | LMW24V-▢▢W |
| LFS151524E-S12C3M▢ | 12W/M | 85 / 95 | 480 | L: 1000 x W: 15 x H:15 | 25,000 | LOMW24V-▢▢W |
Interested in this product?
Contact us for more information or request a free on-site consultation using the button below.
