LED High Mast / Flood Light / High Bay
SIRIMBuatan MalaysiaMalaysia BrandMyHijauIECEE CB SchemeRoHS

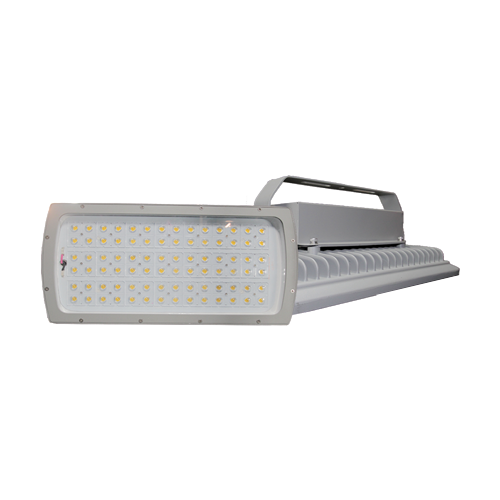

LED High Mast / Flood Light / High Bay (Premium Series)

Use Cases :

Industrial | Outdoor | Highway | Compound

Wattage (W):

100W / 150W / 200W / 300W / 400W / 450W

Color Temperature (CCT):

2200 / 2700 / 3000 / 4000 / 5000

Color Rendering Index (CRI):

70

Beam Angle:

30° / 60° / 90° / 120°

Lumen (lm):

14,500 / 22,500 / 30,000 / 43,500 / 58,000 / 65,000

Luminous Efficacy (lm/w):

145 / 150 / 150 / 145 / 145 / 144

Material:

Pure Aluminium Die Cast with Clear Tempered Glass Diffuser

Dimension (mm):

L: 330 x W: 200 x H: 175 / L: 440 x W: 235 x H: 190 / L: 560 x W: 330 x H: 245

Weight (gm):

4500 / 6500 / 11500

Ingress Protection (IP):

IP66

Lifespan (hrs):

50,000

Driver:

External - Non Dimming / Dimming 1-10V + Surge Protection Device (SPD)

Input Voltage:

100 - 240Vac (50/60 Hz)

Power Factor (PF):

> 0.90

Total Harmonic Distortion (THD):

< 12%

view more >

Specification

Part Number Wattage (W) CRI Lumen (lm) Dimension (mm) Lifespan (hrs) IP
LHMLP-A100N5G▢ 100 70 14,500 L: 330 x W: 200 x H: 175 50,000 IP66
LHMLP-A150N5G▢ 150 70 22,500 L: 440 x W: 235 x H: 190 50,000 IP66
LHMLP-A200N5G▢ 200 70 30,000 L: 440 x W: 235 x H: 190 50,000 IP66
LHMLP-A300N5G▢ 300 70 43,500 L: 560 x W: 330 x H: 245 50,000 IP66
LHMLP-A400N5G▢ 400 70 58,000 L: 560 x W: 330 x H: 245 50,000 IP66
LHMLP-A450N5G▢ 450 70 65,000 L: 560 x W: 330 x H: 245 50,000 IP66

Interested in this product?

Contact us for more information or request a free on-site consultation using the button below.
