Outdoor Lighting > LED Smart Street Light

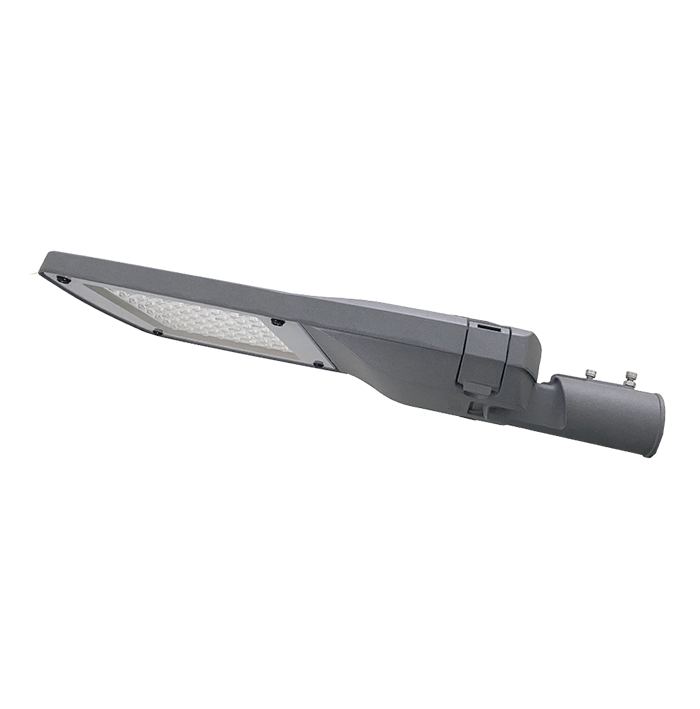

LED Smart Street Light (Eco Premium Series)
Use Cases :
Industrial | Outdoor | Highway | Compound
Wattage (W):
120W / 150W / 180W / 200W / 240W
Color Rendering Index (CRI):
> 70
Beam Angle:
120°
Lumen (lm):
20,400 / 25,500 / 30,600 / 34,000 /40,800
Luminous Efficacy (lm/w):
170
Material:
Pure Aluminium Die Cast with Clear Tempered Glass Diffuser
Dimension (mm):
L: 780 x W:300 x H: 155
Weight (gm):
8,000
Ingress Protection (IP):
IP66
Impact Resistance Glass:
IK08
Lifespan (hrs):
60,000
Driver:
Internal - Non Dimming / Dimming + Surge Protection Device (SPD)
Input Voltage:
100 - 240Vac (50/60 Hz)
Power Factor (PF):
> 0.95
Total Harmonic Distortion (THD):
< 11%
NEMA Socket:
7-Pin NEMA ANSI Connector : Support LEMS, LORA, NB-IOT Smart Lighting System (Optional)
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) | Ingress Protection (IP) |
|---|---|---|---|---|---|---|
| LSTLCP-A120N5G | 120W | > 70 | 20,400 | L: 780 x W:300 x H: 155 | 60,000 | IP66 |
| LSTLCP-A150N5G | 150W | > 70 | 25,500 | L: 780 x W:300 x H: 155 | 60,000 | IP66 |
| LSTLCP-A180N5G | 180W | > 70 | 30,600 | L: 780 x W:300 x H: 155 | 60,000 | IP66 |
| LSTLCP-A200N5G | 200W | > 70 | 34,000 | L: 780 x W:300 x H: 155 | 60,000 | IP66 |
| LSTLCP-A240N5G | 240W | > 70 | 40,800 | L: 780 x W:300 x H: 155 | 60,000 | IP66 |
