Indoor & Commercial > LED Spot Down Light

LED Spot Down Light
SIRIMSuruhanjaya TenagaBuatan MalaysiaMalaysia BrandIECEE CB SchemeRoHS

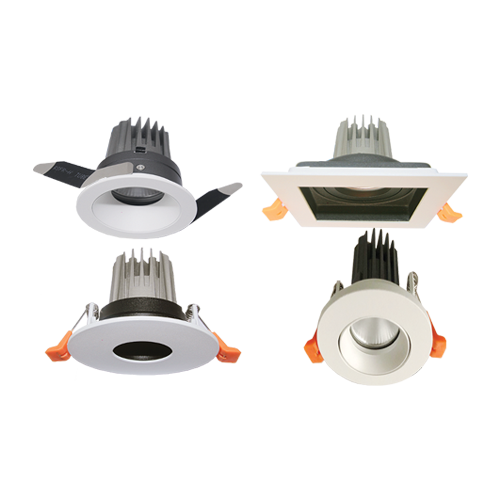

LED Spot Down Light (Eco Premiere Series)

Use Cases :

Restaurant | Hotel | Retail | Office | Commercial | Shopping Mall

Wattage (W):

8W / 15W / 19W / 29W / 36W

Color Temperature (CCT):

2700 / 3000 / 4000 / 6500

Color Rendering Index (CRI):

85 / 95

Beam Angle:

15° / 25° / 40° / 60°

Lumen (lm):

750 / 1,400 / 1,850 / 2,600 / 3,300

Luminous Efficacy (lm/w):

93 / 93 / 97 / 93 / 94

Material:

Aluminium Die Cast + Polycarbonate (PC) Milky Diffuser

Dimension (mm):

Ø: 110 x H: 125 / Ø: 140 x H: 160 / Ø: 160 x H: 160 / Ø: 180 x H: 160 / Ø: 200 x H: 180

Cut Hole Size (mm):

95 / 125 / 145 / 165 / 185

Weight (gm):

570 / 740 / 940 / 1100 / 1300

Ingress Protection (IP):

IP20 / IP44

Lifespan (hrs):

50,000

Driver:

External - Non Dimming / Dimming 1-10V, Phase Cut, DALI

Input Voltage:

220 - 240Vac (50/60 Hz)

Power Factor (PF):

> 0.90

Total Harmonic Distortion (THD):

< 20%

view more >

Specification

Part Number Wattage (W) CRI Lumen (lm) Dimension (mm) Lifespan (hrs) Cut Hole Size (mm)
LS3RP▢-A08C▢▢P▢ 8 85 / 95 750 Ø: 110 x H: 125 50,000 95
LS4RP▢-A15C▢▢P▢ 15 85 / 95 1,400 Ø: 140 x H: 160 50,000 125
LS6RP▢-A19C▢▢P▢ 19 85 / 95 1,850 Ø: 160 x H: 160 50,000 145
LS7RP▢-A28C▢▢P▢ 28 85 / 95 2,600 Ø: 180 x H: 160 50,000 165
LS8RP▢-A36C▢▢P▢ 36 85 / 95 3,300 Ø: 200 x H: 180 50,000 185
