Outdoor Lighting > LED Street Light

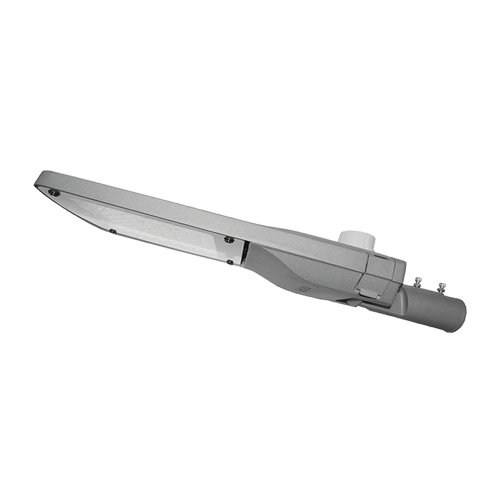

LED Street Light (Eco Premium Series)

Use Cases :

Industrial | Outdoor | Highway | Compound

Wattage (W):

60W / 95W / 120W / 150W / 180W / 200W

Color Temperature (CCT):

3000 / 3500 / 4000 / 5000

Color Rendering Index (CRI):

Beam Angle:

120°

Lumen (lm):

9,000 / 14,500 / 18,500 / 23,000 / 27,000 / 29,500

Luminous Efficacy (lm/w):

150 / 153 / 154 / 153 / 150 / 148

Material:

Pure Aluminium Die Cast with Clear Tempered Glass Diffuser

Dimension (mm):

L: 630 x W: 270 x H: 155 / L: 780 x W: 300 x H: 155

Weight (gm):

6000 / 8000

Ingress Protection (IP):

IP66

Lifespan (hrs):

50,000

Driver:

Internal - Non Dimming / Dimming 1-10V, Surge Protection Device (SPD)

Input Voltage:

100 - 240Vac (50/60 Hz)

Power Factor (PF):

> 0.90

Total Harmonic Distortion (THD):

< 12%

Specification

Part Number	Wattage (W)	CRI	Lumen (lm)	Dimension (mm)	Lifespan (hrs)	IP
LSTLCP-A60N5G▢	60	70	9,000	L: 630 x W: 270 x H: 155	50,000	IP66
LSTLCP-A95N5G▢	95	70	14,500	L: 780 x W: 300 x H: 155	50,000	IP65
LSTLCP-A120N5G▢	120	70	18,500	L: 780 x W: 300 x H: 155	50,000	IP66
LSTLCP-A150N5G▢	150	70	23,000	L: 780 x W: 300 x H: 155	50,000	IP66
LSTLCP-A180N5G▢	180	70	27,000	L: 780 x W: 300 x H: 155	50,000	IP66
LSTLCP-A200N5G▢	200	70	29,500	L: 780 x W: 300 x H: 155	50,000	IP66
