Indoor & Commercial > T8 LED Tube Sensor

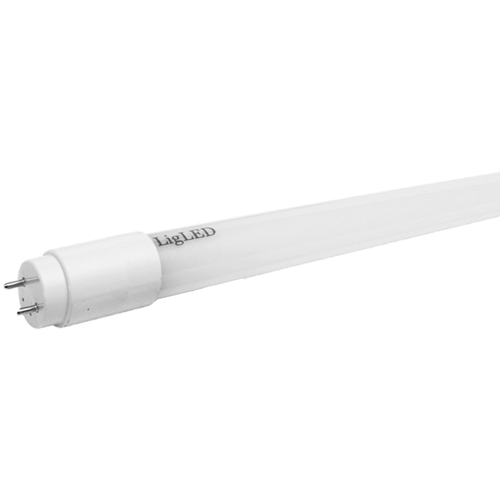

T8 LED Tube Sensor (Eco Master Series)
Use Cases :
Retail | Office | Industrial | Hospitality
Wattage (W):
8W / 16W / 18W
Colour Rende ring Index (CRI):
> 85
Beam Angle:
160°
Lumen (lm):
1,100 / 2,200 / 2,400
Luminous Efficacy (lm/w):
138 / 133
Material:
Polycarbonate (PC) Milky Diffuser with Built in Aluminium Heat Sink
Dimension (mm):
Ø: 26 x L: 600 / Ø: 26 x L: 1200
Weight (gm):
117 / 206
Lamp Base:
G13
Ingress Protection (IP):
IP20
Lifespan (hrs):
50,000
Driver:
Internal - Non Dimming
Input Voltage:
220 - 240Vac (50/ 60 Hz)
Power Factor (PF):
> 0.95
Total Harmonic Distortion (THD):
< 15%
Motion Sensor Type:
Microwave Sensor
Motion Sensor Mode:
0% / 20% / 30% on standby and 100% on Full Brightness when Movement Detected
Motion Sensor Distance (m):
5-8m
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) |
|---|---|---|---|---|---|
| LTV2MW-P08ES3SM | 8W | > 85 | 1,100 | Ø: 26 x L: 600 | 50,000 |
| LTV8MW-P16ES3SM | 16W | > 85 | 2,200 | Ø: 26 x L: 1200 | 50,000 |
| LTV8MW-P18ES3SM | 18W | > 85 | 2,400 | Ø: 26 x L: 1200 | 50,000 |
