Outdoor Lighting > LED Compound Light Model A

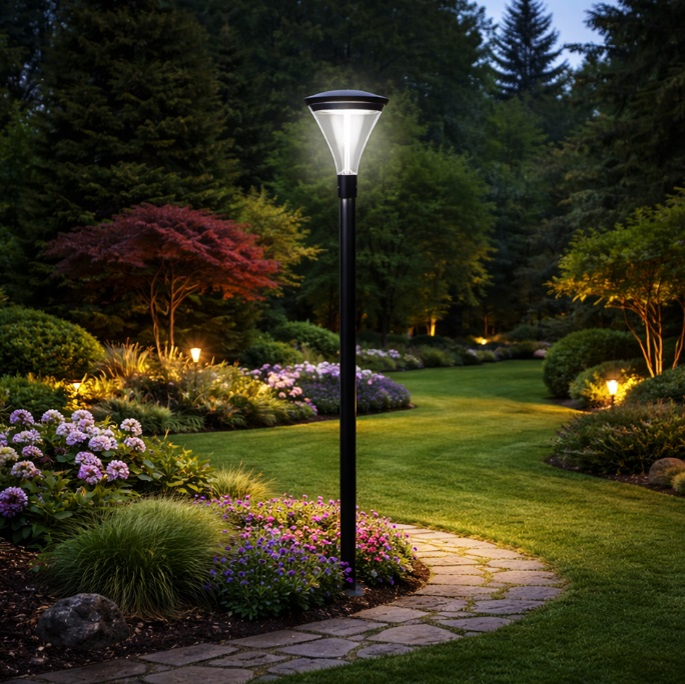

LED Compound Light Model A (Eco Elegant Series)
Use Cases :
Outdoor | Garden | Building | Compound
Wattage (W):
30W / 60W
Colour Rendering Index (CRI):
> 70
Beam Angle:
120°
Lumen (lm):
4,800 / 9,600
Luminous Efficacy (lm/w):
160
Dimension (mm) :
Ø: 360 x H: 510
Weight (kg):
4.3kg / 4.5kg
Ingress Protection (IP):
IP66
Impact Resistance Glass:
IK08
Lifespan (hrs):
50,000
System Controller:
Internal - Non Dimming / Dimming +Surge Protection Device (SPD)
Input Voltage:
100 - 240Vac (50/60 Hz)
Power Factor (PF):
> 0.95
Total Harmonic Distortion (THD):
< 11%
Pole Hole (mm):
76mm
Optional Smart Solar Controller:
4-Pin RS485 MPPT Connector: Support LEMS, LORA, NB-IoT Smart Lighting System (Optional)
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) |
|---|---|---|---|---|---|
| LCLRAP - A30N3P▢ | 30W | > 70 | 4,800 | Ø: 360 x H: 510 mm | 50,000 |
| LCLRAP - A60N3P▢ | 60W | > 70 | 9,600 | Ø: 360 x H: 510 mm | 50,000 |
