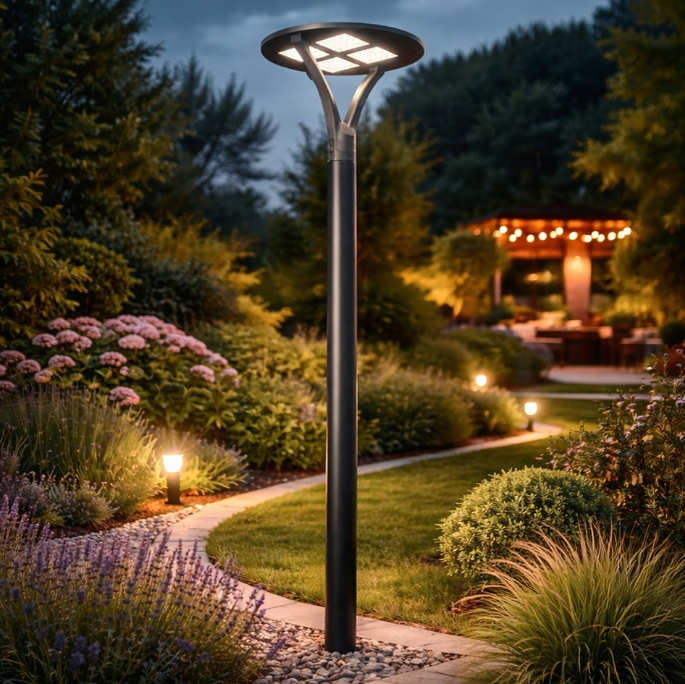

LED Compound Light Model B (Eco Elegant Series)
Use Cases :
Outdoor | Garden | Building | Compound
Wattage (W):
60W / 120W
Colour Rendering Index (CRI):
> 70
Beam Angle:
120°
Lumen (lm):
9,600 / 19,200
Luminous Efficacy (lm/w):
160
Material:
Pure Aluminium Die Cast with Clear Tempered Glass Diffuser
Dimension (mm):
Ø: 425 x H: 550 mm
Weight (kg):
6.0kg / 6.5kg
Ingress Protection (IP):
IP66
Impact Resistance Glass:
IK08
Lifespan (hrs):
50,000
System Controller:
Internal - Non Dimming / Dimming +Surge Protection Device (SPD)
Input Voltage:
100 - 240Vac (50/60 Hz)
Power Factor (PF):
> 0.95
Total Harmonic Distortion (THD):
< 11%
Pole Hole (mm):
60mm
Optional Smart Solar Controller:
4-Pin RS485 MPPT Connector: Support LEMS, LORA, NB-IoT Smart Lighting System (Optional)
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) |
|---|---|---|---|---|---|
| LCLRBP - A60N3P▢ | 60W | > 70 | 9,600 | Ø: 425 x H: 550 mm | 50,000 |
| LCLRBP - A120N3P▢ | 120W | > 70 | 19,200 | Ø: 425 x H: 550 mm | 50,000 |
Interested in this product?
Contact us for more information or request a free on-site consultation using the button below.
