Indoor & Commercial > T8 LED Bare Channel
T8 LED Bare Channel (Eco Master Series)
Use Cases :
Retail | Office | Industrial | Hospitality
Wattage (W):
8W x 1 / 8W x 2 / 16W x 1 / 16W x 2
Colour Rendering Index (CRI):
> 80
Beam Angle:
160°
Lumen (lm):
1,100 / 2,200 / 4,400 / 2,400 / 4,800
Luminous Efficacy (lm/w):
138 / 133
Material:

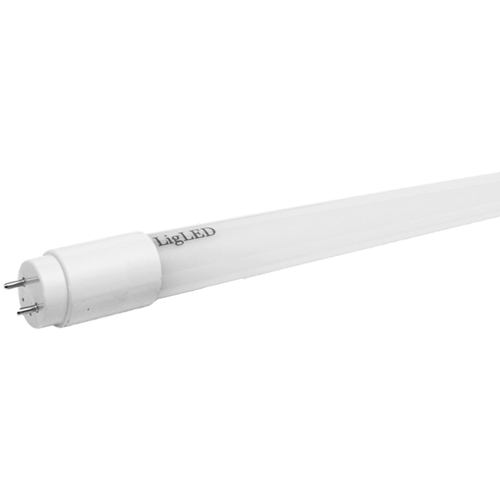

Heavy Gauge Steel Sheet Body (Housing) + Polycarbonate (PC) Milky Diffuser with Built in Aluminium Heat Sink (TS LED Tube)
Dimension (mm):
L: 610 x W: 44 x H: 64 / L: 610 x W: 105 x H: 71 / L: 1220 x W: 44 x H: 64 / L: 1220 x W: 105 x H: 71 / L: 1220 x W: 44 x H: 64 / L: 1220 x W: 105 x H: 71
Weight (gm):
500 / 550 / 950 / 1000
Lamp Base:
G13
Ingress Protection (IP):
IP20
Lifespan (hrs):
50,000
Driver:
Internal - Non Dimming (Complied with JKR Spec)
Input Voltage:
220- 240Vac (50/60Hz)
Power Factor (PF):
> 0.95
Total Harmonic Distortion (THD):
< 11%
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) |
|---|---|---|---|---|---|
| LBN58121E-P08ES3SM | 8W x 1 | > 80 | 1,100 | L: 610 x W: 44 x H: 64 | 50,000 |
| LBN58221E-P08ES3SM | 8W x 2 | > 80 | 2,200 | L: 610 x W: 105 x H: 71 | 50,000 |
| LBN58141E-P16ES3SM | 16W x 1 | > 80 | 2,200 | L: 1220 x W: 44 x H: 64 | 50,000 |
| LBN58241E-P16ES3SM | 16W x 2 | > 80 | 4,400 | L: 1220 x W: 105 x H: 71 | 50,000 |
| LBN58141E-P18ES3SM | 18W x 1 | > 80 | 2,400 | L: 1220 x W: 44 x H: 64 | 50,000 |
| LBN58241E-P18ES3SM | 18W x 2 | > 80 | 4,800 | L: 1220 x W: 105 x H: 71 | 50,000 |
Interested in this product?
Contact us for more information or request a free on-site consultation using the button below.
