T8 LED Tube Sensor (Eco Elite Plus Series)
Use Cases :

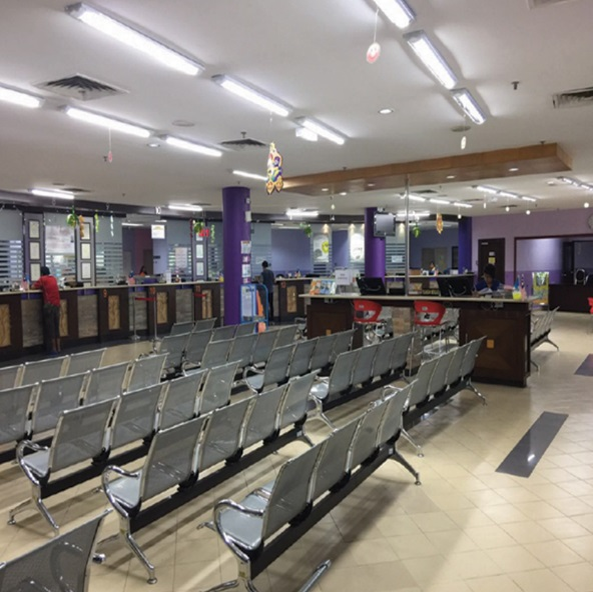

Retail | Office | Industrial | Hospitality
Wattage (W):
(2ft) 1 x 8W / (4ft) 1 x 10W / (4ft) 1 x 12W / (4ft) 1 x 14W / (4ft) 1 x 16W
Colour Rendering Index (CRI):
> 85
Beam Angle:
160°
Lumen (lm):
1,400 / 1,800 / 2,100 / 2,400 / 2,800
Luminous Efficacy (lm/w):
171 / 175 / 180
Material:
Polycarbonate (PC) Milky Diffuser
Dimension (mm):
Ø: 26 X L: 600 / Ø: 26 X L: 1,200
Weight (gm):
120 / 210
Lamp Base:
G13
Ingress Protection (IP):
IP20
Lifespan (hrs):
60,000
Driver:
Internal - Non Dimming
Input Voltage:
220- 240Vac (50/60 Hz)
Power Factor (PF):
> 0.95
Total Harmonic Distortion (THD):
< 15%
Motion Sensor Type:
Microwave Sensor
Motion Sensor Mode:
0% / 20% / 30% on standby and 100% on Full Brightness when Movement Detected
Motion Sensor Distance (m):
5 - 8m
Specification
| Part Number | Wattage (W) | CRI | Lumen (lm) | Dimension (mm) | Lifespan (hrs) |
|---|---|---|---|---|---|
| LTV2S-P08ES3EPM▢-MW | 8W | > 85 | 1,400 | Ø: 26 X L: 600 mm | 60,000 |
| LTV8-P10ES3EPM▢-MW | 10W | > 85 | 1,800 | Ø: 26 X L: 1,200 mm | 60,000 |
| LTV8-P12ES3EPM▢-MW | 12W | > 85 | 2,100 | Ø: 26 X L: 1,200 mm | 60,000 |
| LTV8-P14ES3EPM▢-MW | 14W | > 85 | 2,400 | Ø: 26 X L: 1,200 mm | 60,000 |
| LTV8-P16ES3EPM▢-MW | 16W | > 85 | 2,800 | Ø: 26 X L: 1,200 mm | 60,000 |
